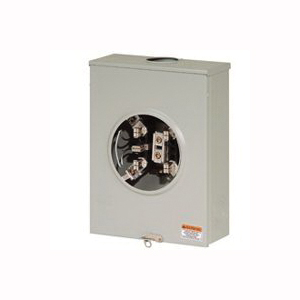

Cutler-Hammer UGHTRS213BE Meter Socket, 1-Phase, 200 A, 600 V, 5-Jaw, 1-Socket
- Bypass Type: Horn
- Cover Type: Ringless
- Current Rating: 200 A
- Dimensions: 15.13 in H x 11.25 in W x 4.5 in D
- Feed Type: Bottom, Top
- Model #: UGHTRS213BE
- UPC #: 782113890616
- SKU: 2991271
Product Details
Single meter socket, ringless, horn bypass, 5 terminals, 200 A, 600 VAC, OH/UG service, hub provision only, grounded fifth terminal, service ground lug #14-2 Cu/Al. Wire size range 1/0-350. UL labeled. 16 x 12 x 6 in. Suitable for either top or bottom service cable entry.Item Specifications
| Bypass Type | Horn |
|---|---|
| Cover Type | Ringless |
| Current Rating | 200 A |
| Dimensions | 15.13 in H x 11.25 in W x 4.5 in D |
| Feed Type | Bottom, Top |
| Interrupt Rating | 10 kA |
| Number of Cutouts | 1 |
| Number of Jaws | 5 |
|---|---|
| Number of Phases | 1 |
| Number of Positions | 1 |
| Number of Sockets | 1 |
| Voltage Rating | 600 V |
| Wire Configuration | 3-Wire |
| Wire Size | 6 AWG to 350 kcmil |
MORE DETAILS:
- Cutler_Hammer_100021058_Specification_Sheet.pdf
- Cutler_Hammer_100021058_Catalog.pdf
- Warranty: 1 Year Limited
